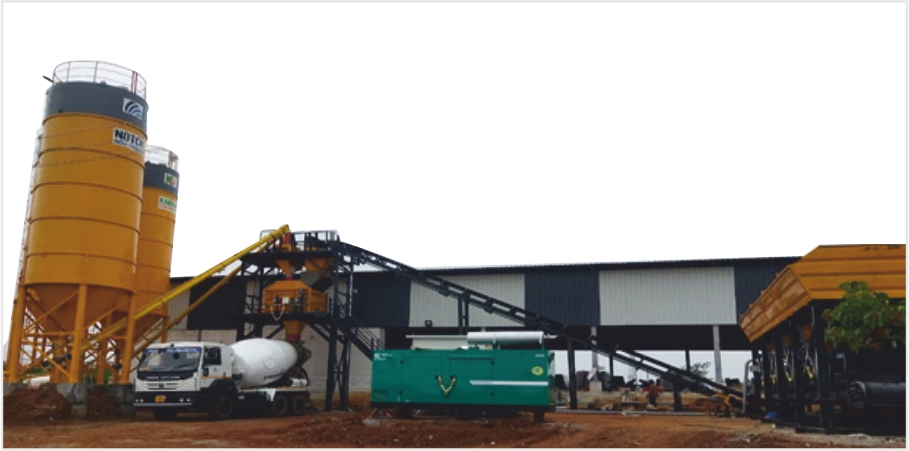

Concrete Batching Plants and It's Solutions
Our range of Concrete Batching Plants such as CP 30, IP 30, IP 60, and IP 60+ are capable to meet the various concrete production demands of Building Projects, Bridge Projects and Ready Mix Concrete supply. We guarantee you not only the products, but also provide relevant solution in the Concrete Batching. Simply you can call us a "Solution Provider". Our Design integration method ensures the plant life more durable under harsh working condition and achives concrete homogeneity in set time.
| S.No | Description | CP 30 | IP 30 | IP 60/ IP60+ |
|---|---|---|---|---|
| 1 | Mixer | Pan/TS | Pan/TS | TS |
| 2 | Mixer Capacity | 0.5 m3 | 0.5 m3 | 0.5 m3 |
| 3 | Aggregate Storage | 4 Quad Bins | 4 Inline Bins | 4 Inline Bins |
| 4 | Aggregate Weighing | Conveyor | Conveyor | Conveyor |
| 5 | Aggregate Capacity Per Bin | 5 m3 | 7.5 m3 | 10 m3 |
| 6 | Maximum Size of Aggregates | 40 mm | 40 mm | 40 mm |
| 7 | Theoretical Output | 30 m3/hr | 30 m3/hr | 60/65m3Per hr |
| 8 | Discharge Height | 4m | 4m | 4m |
| 9 | Maximum Aggregate Weighing | 1250 Kg | 1250 Kg | 1250 Kg |
| 10 | Maximum Cement Weighing | 250 Kg | 250 Kg | 600 Kg |
| 11 | Maximum Water Weighing | 150 Kg | 150 Kg | 300 Kg |
| 12 | Operating Voltage & Frequency | 415 V+ 10 V, 50 Hz | 415 V+ 10 V, 50 Hz | 415 V+ 10 V, 50 Hz |
| 13 | Cement/Filler Weighing System | Yes | Yes | Yes |
| 14 | Water Weighing System | Yes | Yes | Yes |
| 15 | Admixture Weighing System | Yes | Yes | Yes |
| 16 | Screw Conveyor for Cement (168/219) | Optional | Optional | Optional |
| 17 | Control System | SCADA Based | SCADA Based | SCADA Based |
| 18 | IoT - Smart Monitoring | Optional | Optional | Optional |
