DX Concrete Pumps

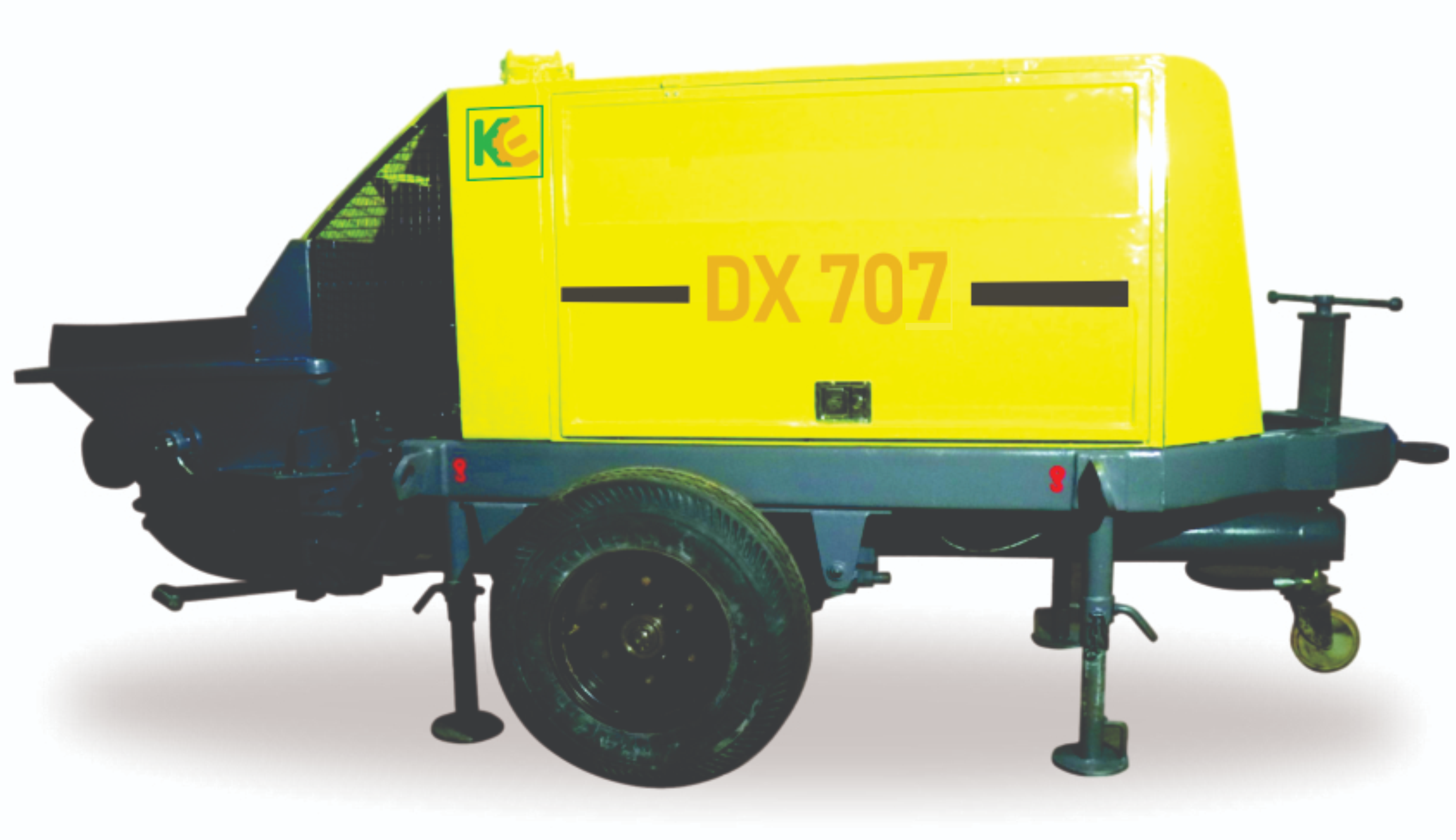

DX 707 Concrete Pump

DX 707
S.No Parameters Values
1 Differencial Cyclinder Drive Rod Side Piston Side
2 Maximum Theoritical Output (m3) 40 27
3 Maximum Concrete Pressure (bar) 57 85
4 Maximum Number of Strokes 30 20
5 Maximum Horizontal Placing Distance (m)* 300 430
6 Maximum Vertical Placing Distance (m)* 80 120
7 Delivery Cyclinder Diameter x Stroke 200x700
8 Engine Koel/Equivalent
9 Drive Power 49KW
10 Hydraulic Circuit Open (OPS250)
11 Volume of Hopper (Litre) 600
12 Type of Valve S
13 Weight (Kg) 3200
14 Hopper Feeding Height (m) 1.35

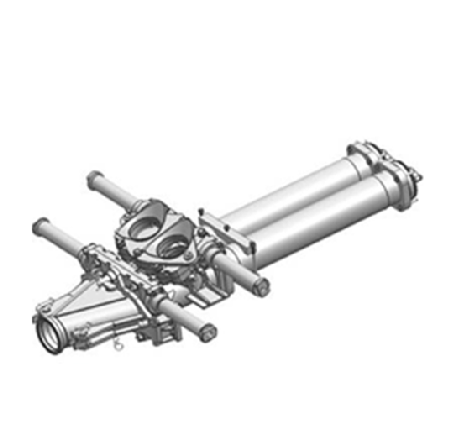

Proven S-Technology

the wear & tear of the concrete pump using S-Valve technology is also less which results in reduced operation costs.

Simple and Rugged Hydraulic

we use Rexroth hydraulic pump,helps the concrete pump system as a whole operate safety,optimally, and withgreater dependability to create goods more quickly and of a higher caliber

Power Packed Koel Engine

Concrete pumps are typically used as robust ones, hence kirloskar engines are the most reliable machines to employ in them.
