DX Concrete Pumps

DX Pump Series

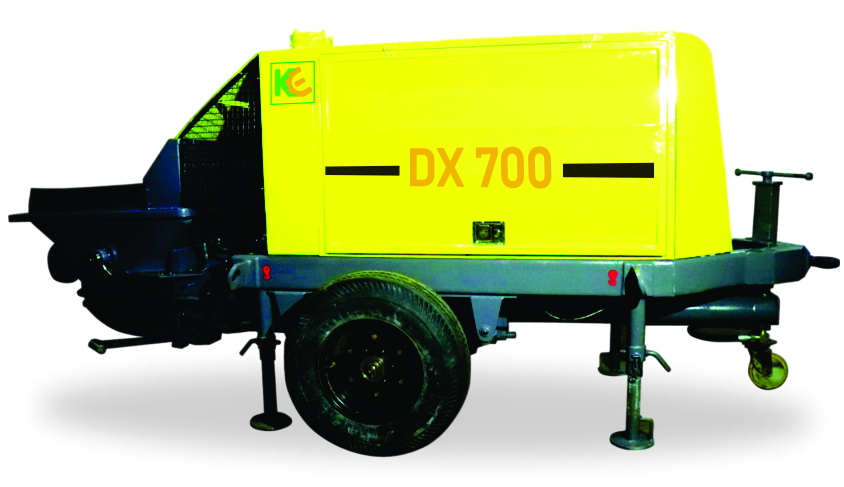

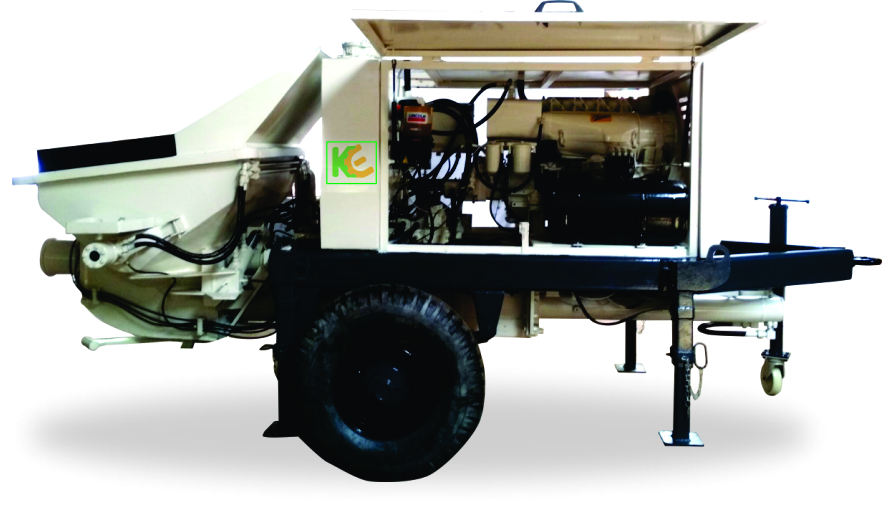

DX 700 DX 707 DX 1004 DX 1807 DX 1807 RMC DX 1407 HR DX 1408 HD
S.No Parameters Values Values Values Values Values Values Values
1 Differential Cylinder Drive Piston Side Rod Side Piston Side Rod Side Piston Side Rod Side Piston Side Rod Side Piston Side Rod Side Piston Side Rod Side Piston Side
2 Maximum Theoritical Output(m³) 27 40 27 51 34 71 47 58 38 71 47 79 53
3 Maximum Concrete Pressure(Bar) 74 57 85 57 85 71 105 80 118 71 105 106 157
4 Maximum Number of Strokes 25 30 20 27 18 27 18 27 18 27 18 30 20
5 Maximum Horizontal Placing Distance(m)* 300 300 430 300 430 450 650 500 750 450 650 650 1100
6 Maximum vertical placing distance(m)* 80 80 120 80 120 105 160 120 180 105 160 160 230
7 Delivery Cylinder Diameter X Stroke 180x700 200x700 200x1000 200x1400 180x1400 200x1400 200x1400
8 Engine Koel/Equivalent Koel/Equivalent Koel/Equivalent Koel/Equivalent Koel/Equivalent Koel/Equivalent Koel/Equivalent
9 Drive power 35KW 49KW 49KW 75KW 75KW 108KW 132KW
10 Hydraulic circuit Open (OPS250) Open (OPS250) Open (OPS250) Open (TPS600) Open (TPS600) Open (TPS600) Open (TPS600)
11 Volume of hopper(litre) 350 600 600 600 600 600 600
12 Type of valve S S S S S S S
13 Weight (Kg) 2700 3200 3500 4000 4000 4000 4000
14 Hopper feeding height(m) 1.05 1.35 1.3 1.3 1.3 1.3 1.3
